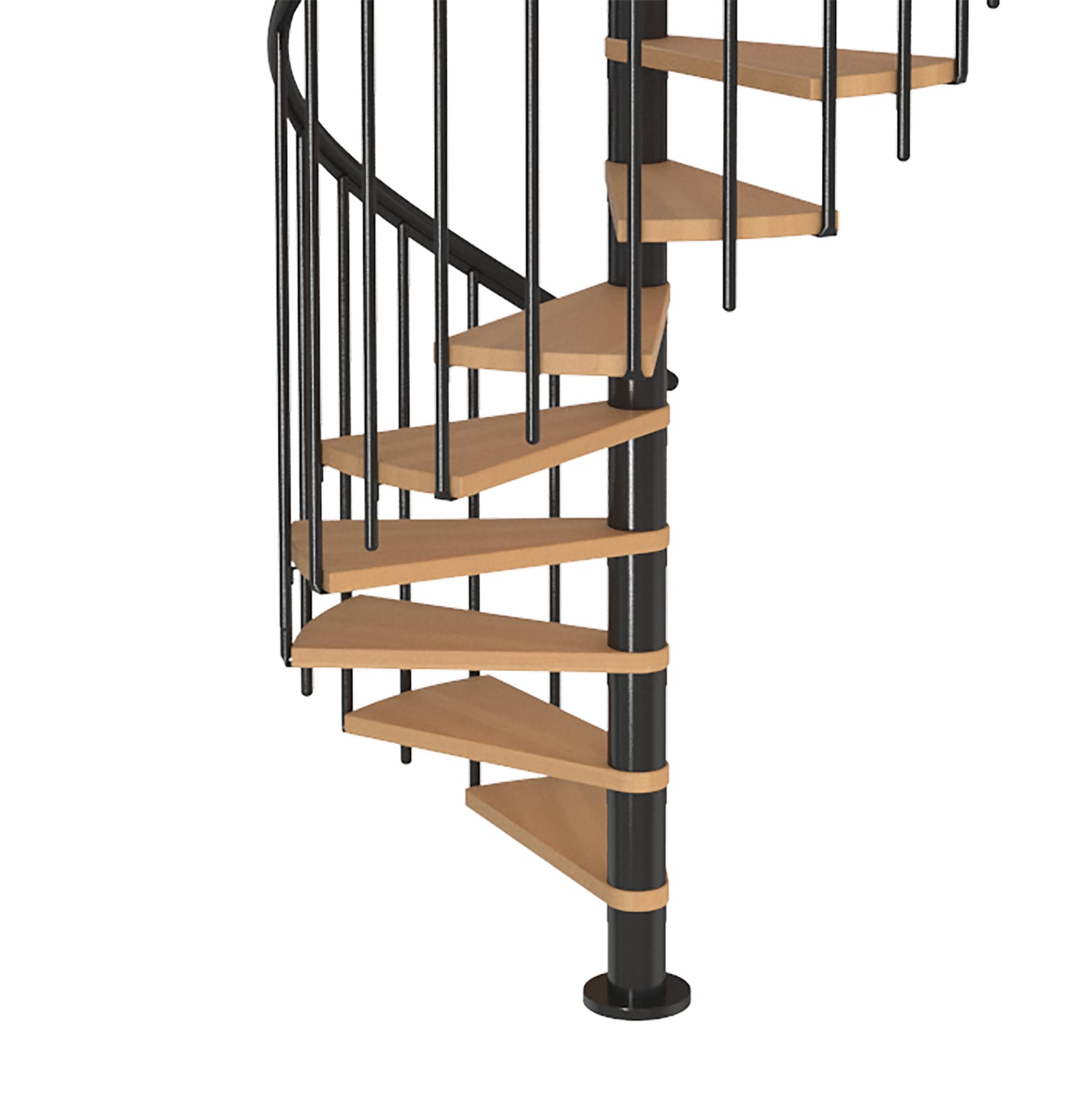

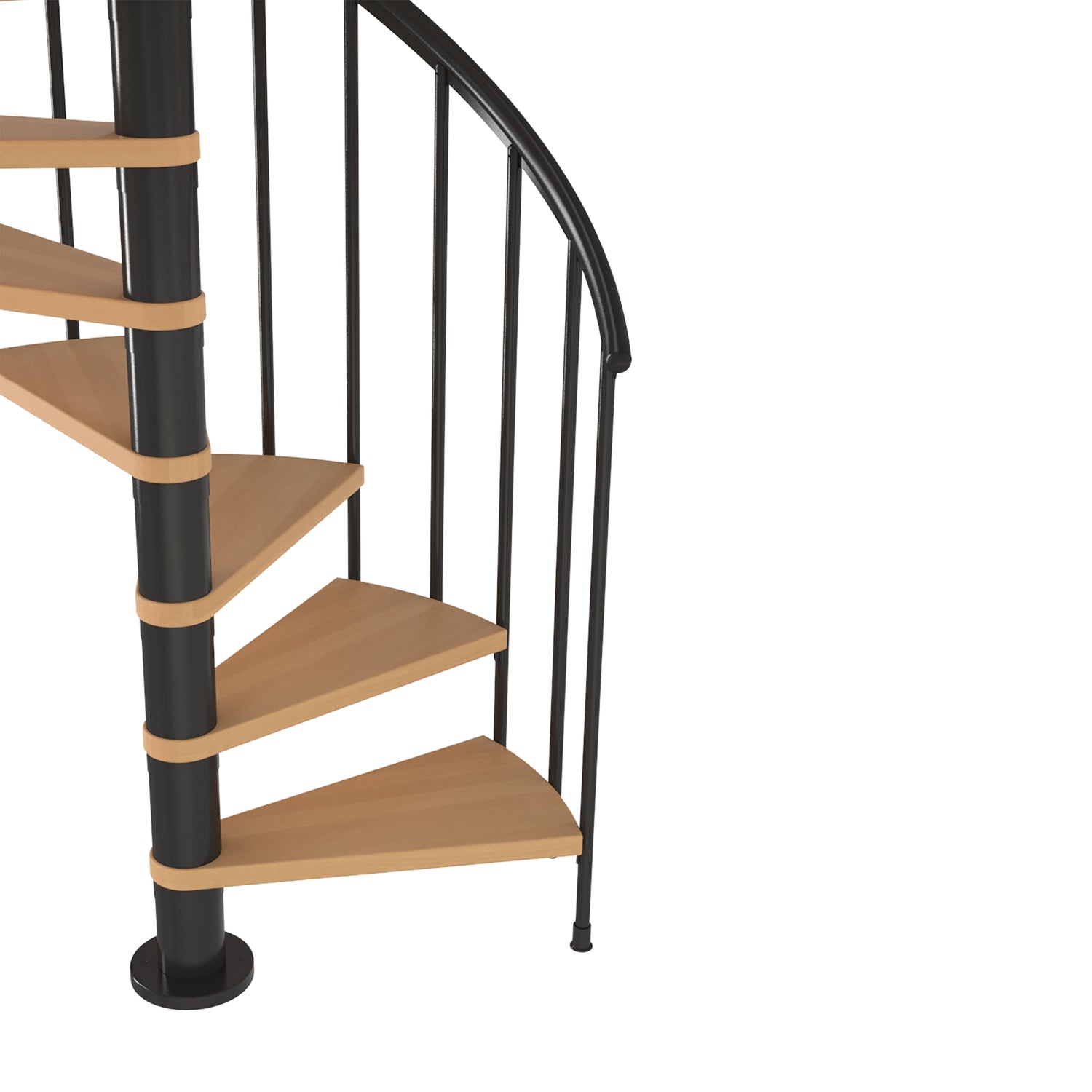

Calgary 47" Diameter Extra Baluster Spiral Staircase Kit

DOLLE Calgary spiral staircase is a Nordic design and has a nice, tight, and stylish appearance that combines design and comfort at an attractive affordable price. With this space-saving staircase kit, you get optimum use out of your available space.

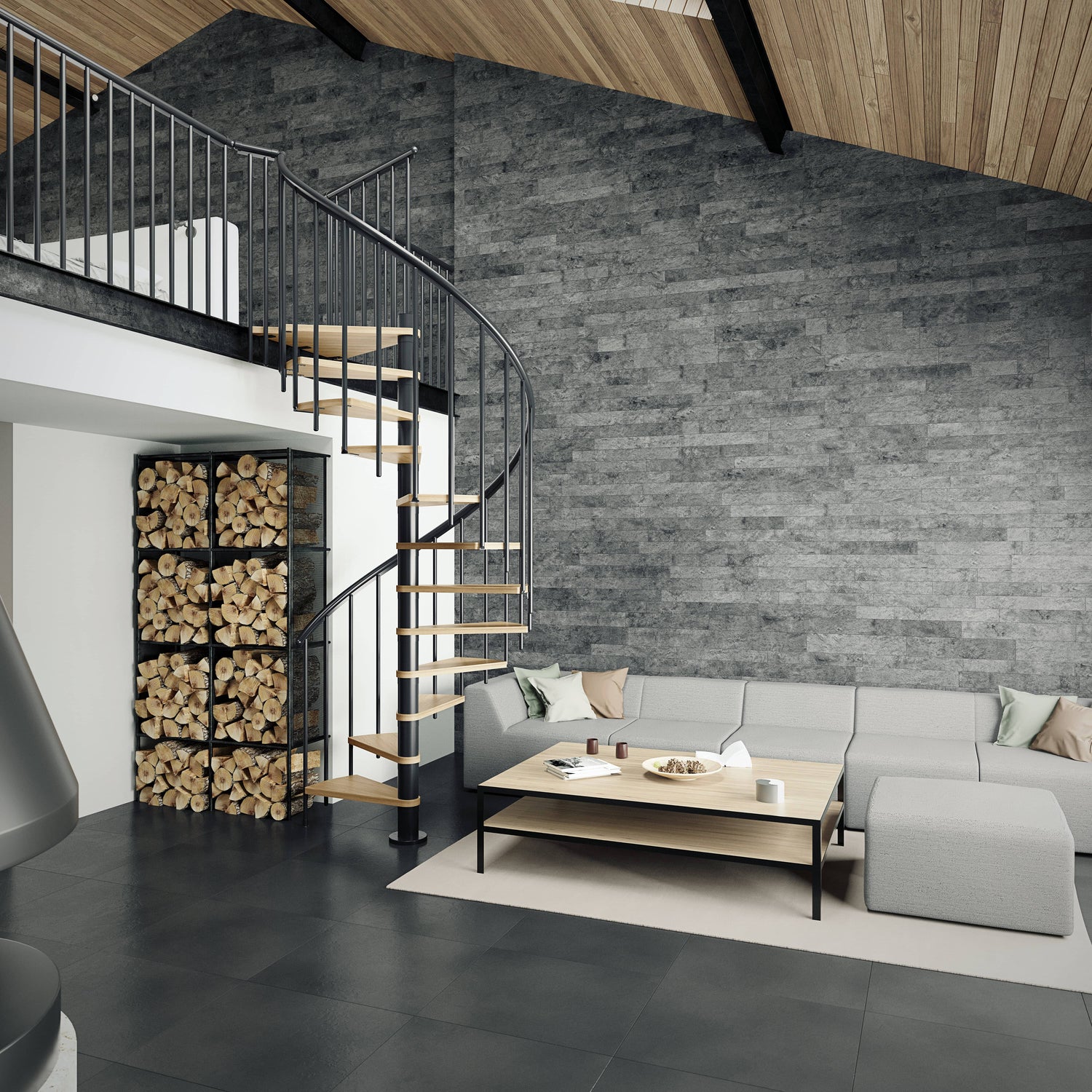

The Calgary spiral staircase from DOLLE stands as a modern work of art in the middle of the home and functions as an essential link in the home's infrastructure, where the upper and lower floors meet. The Calgary can achieve a floor-to-floor height of 80-5/16 to 110-1/2 inches.

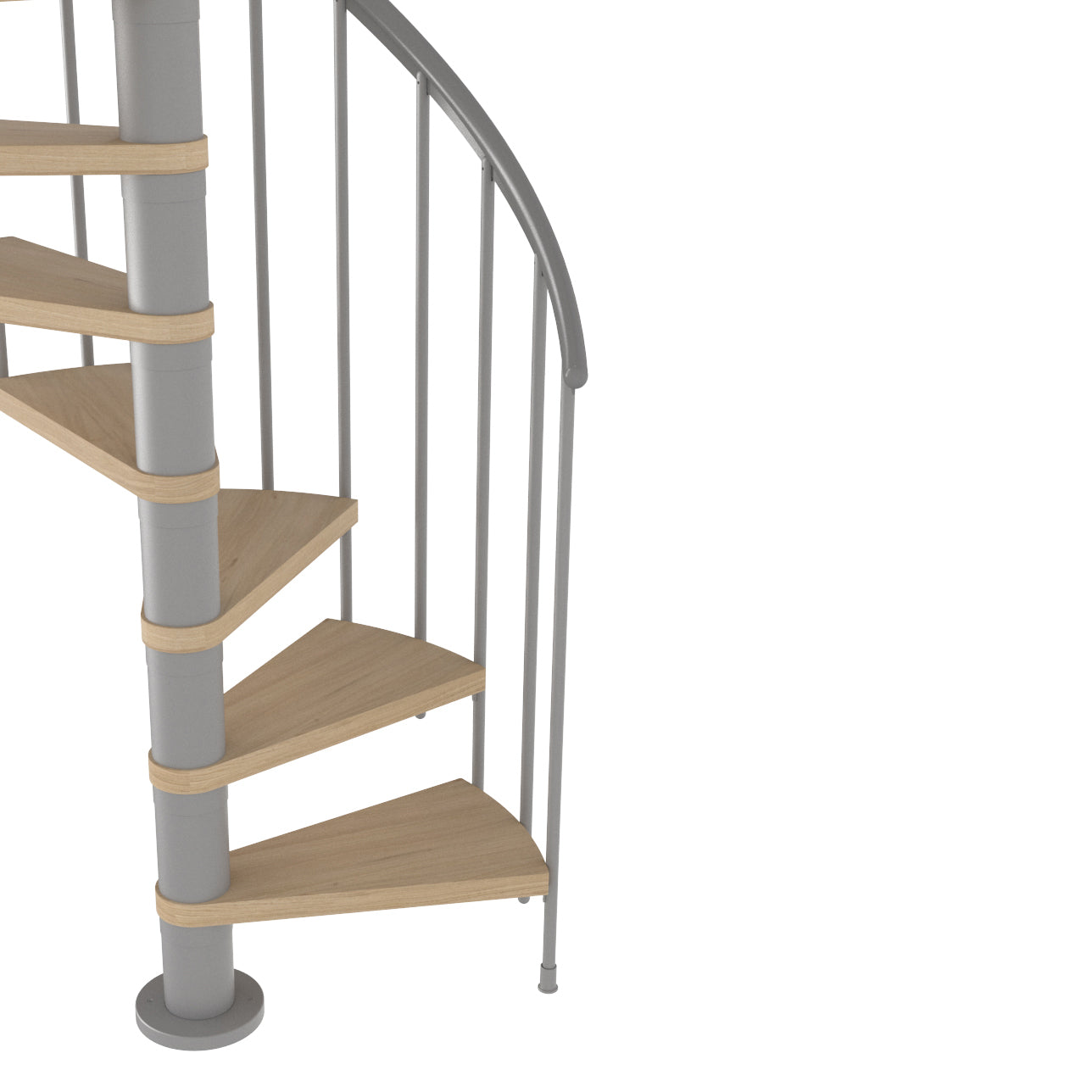

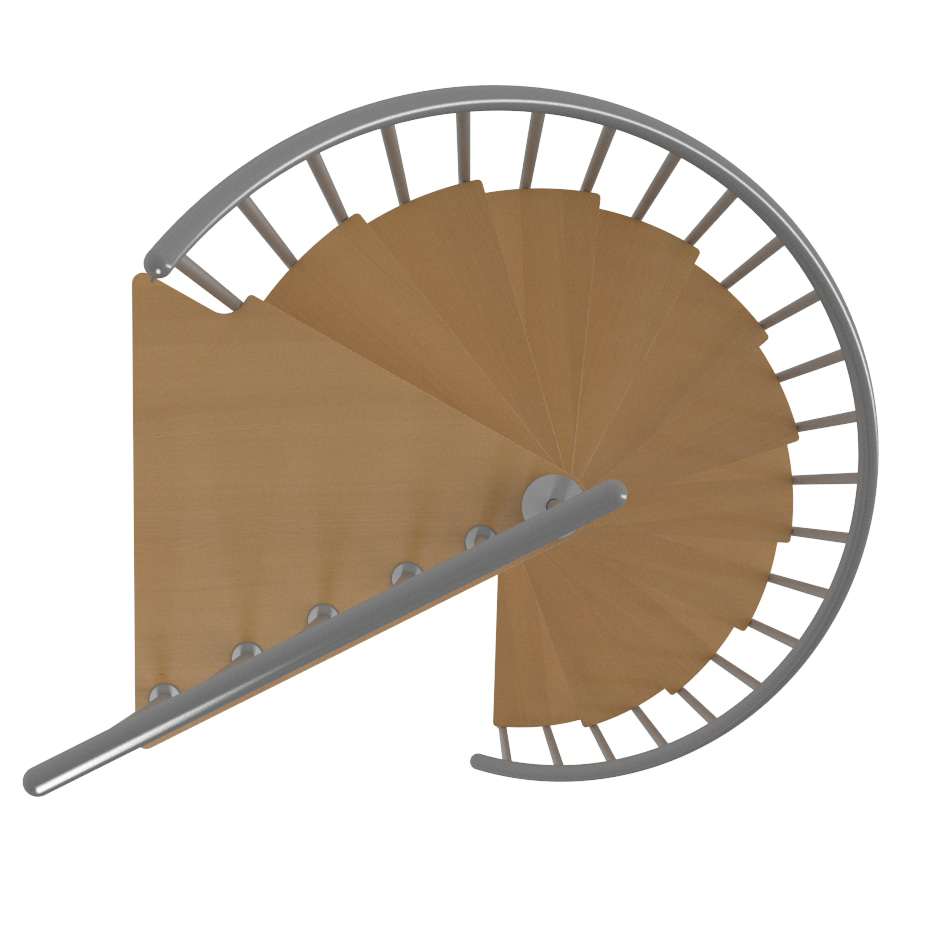

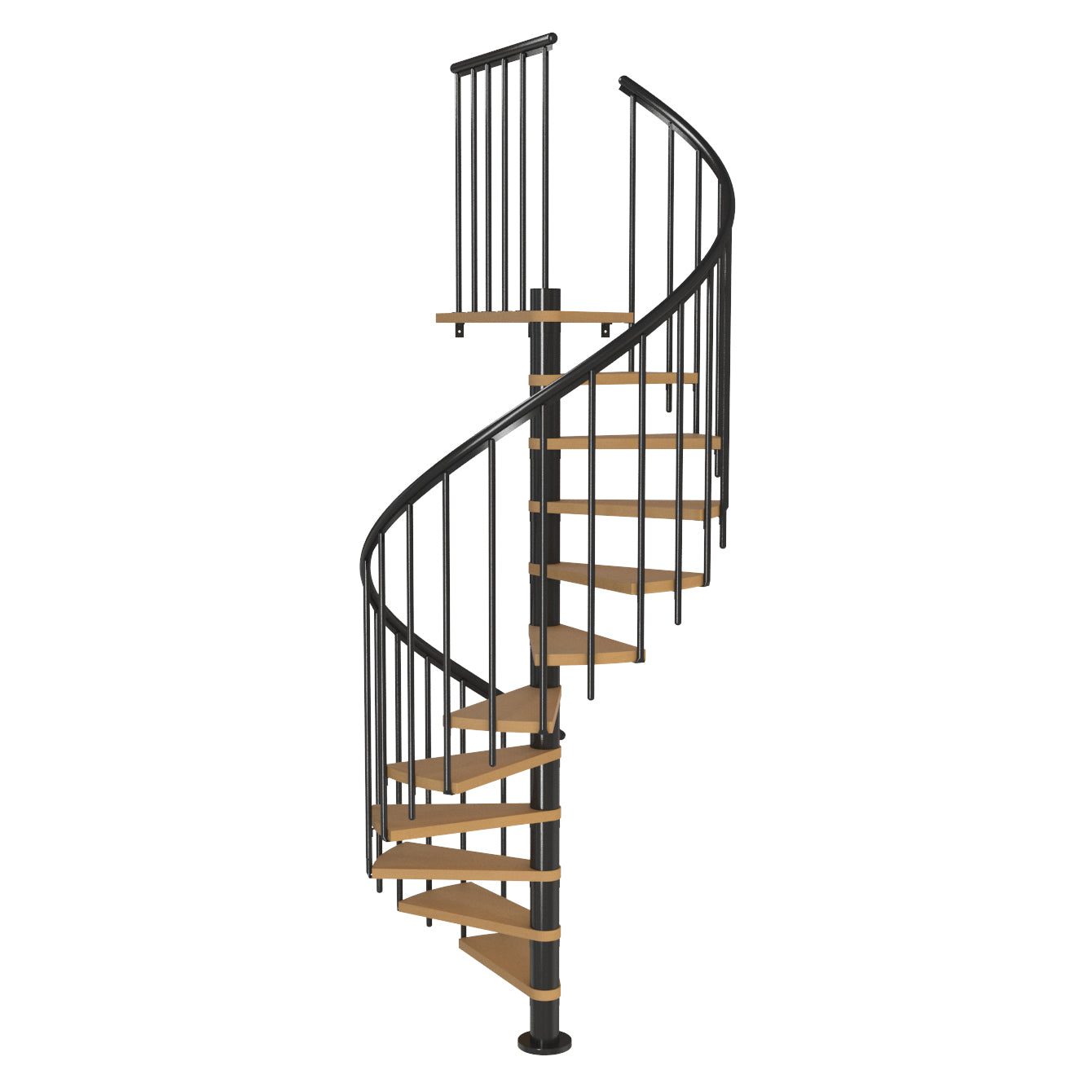

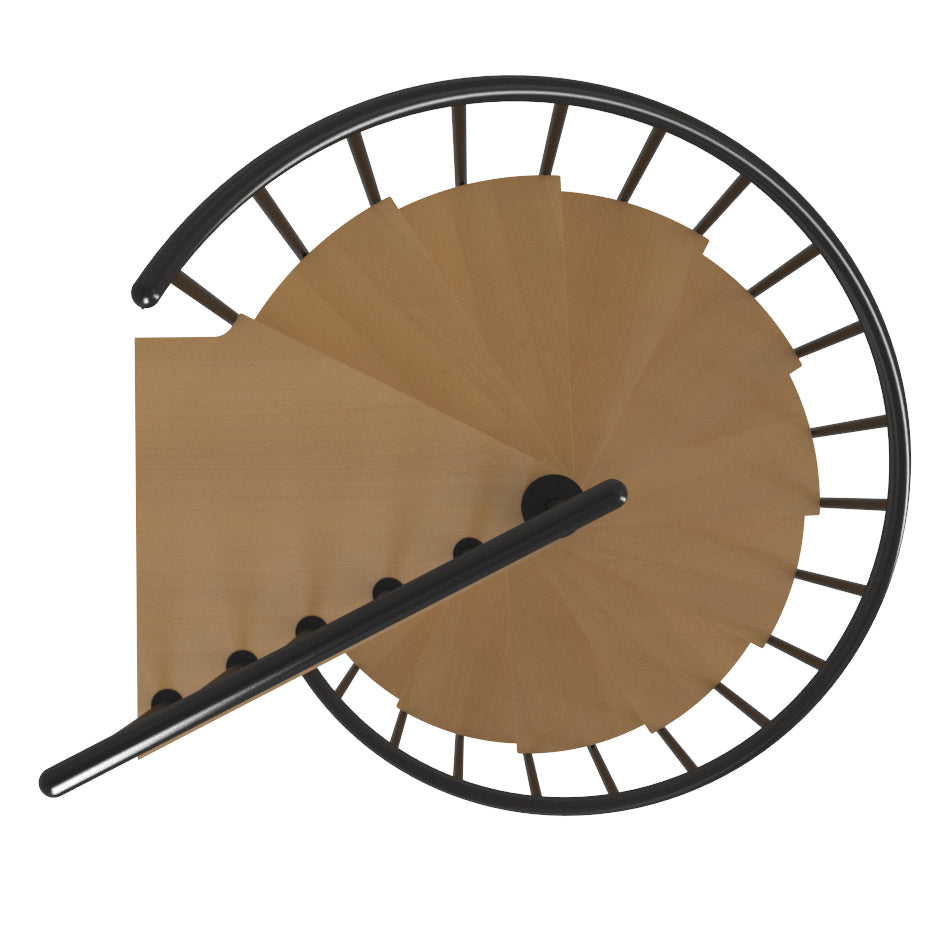

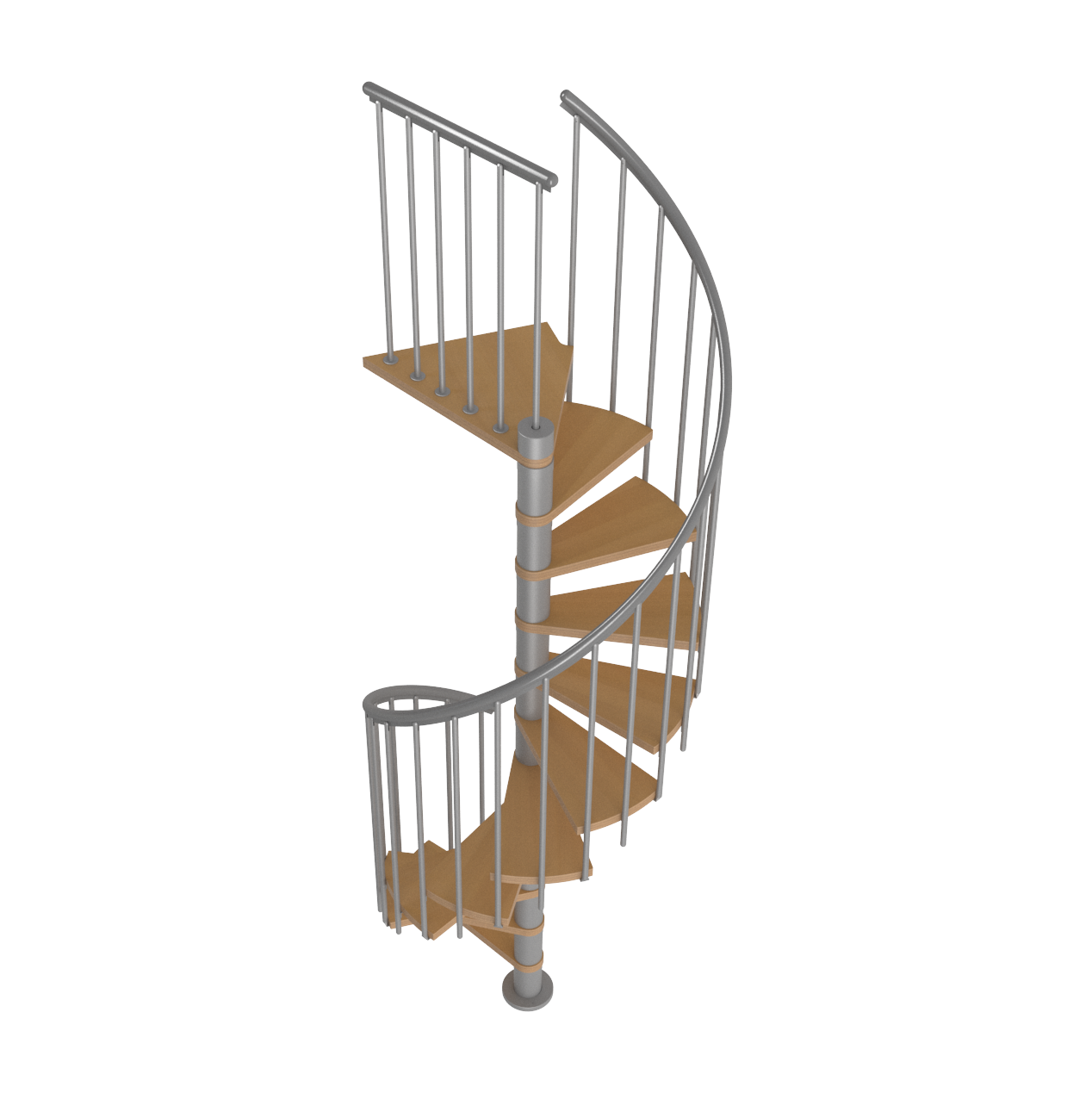

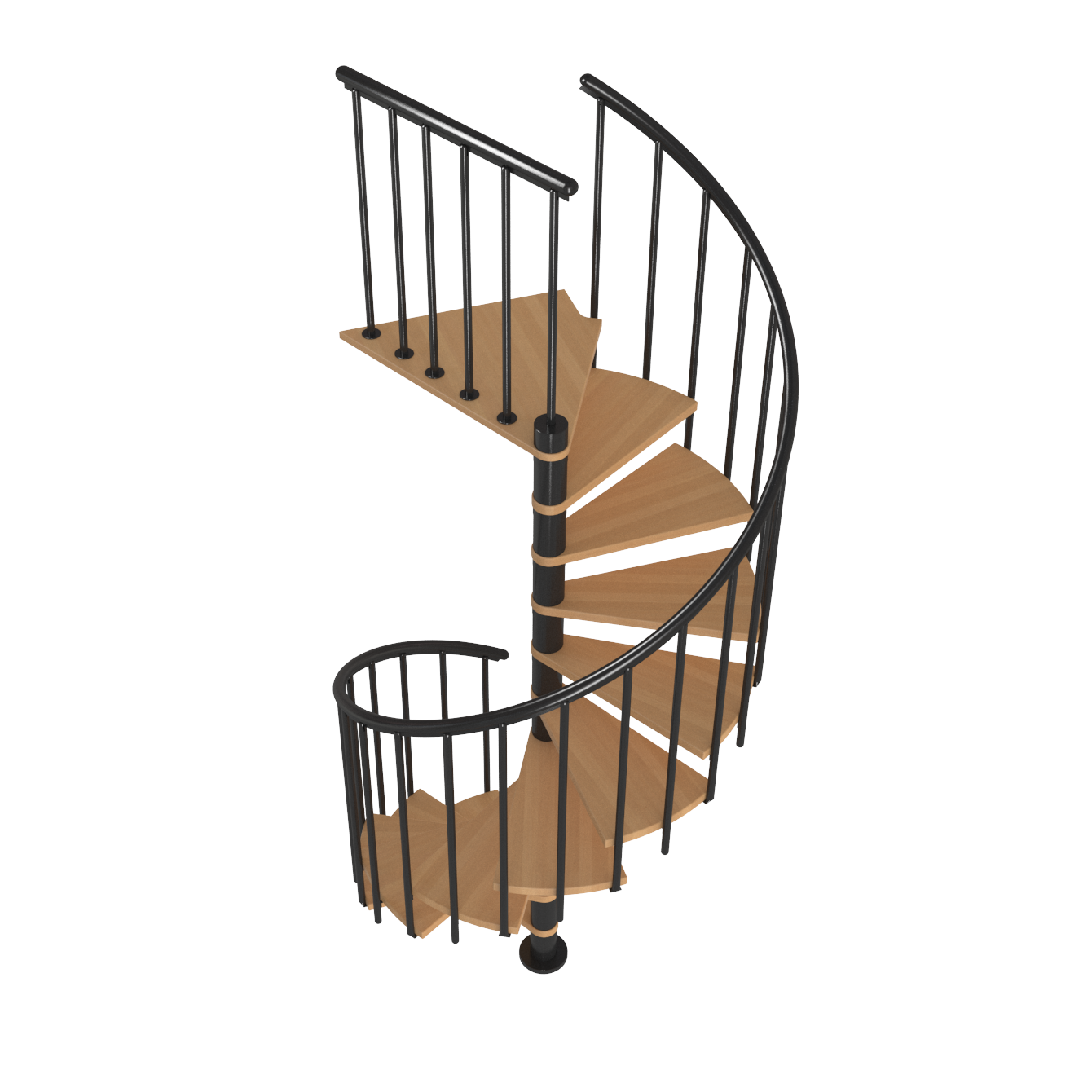

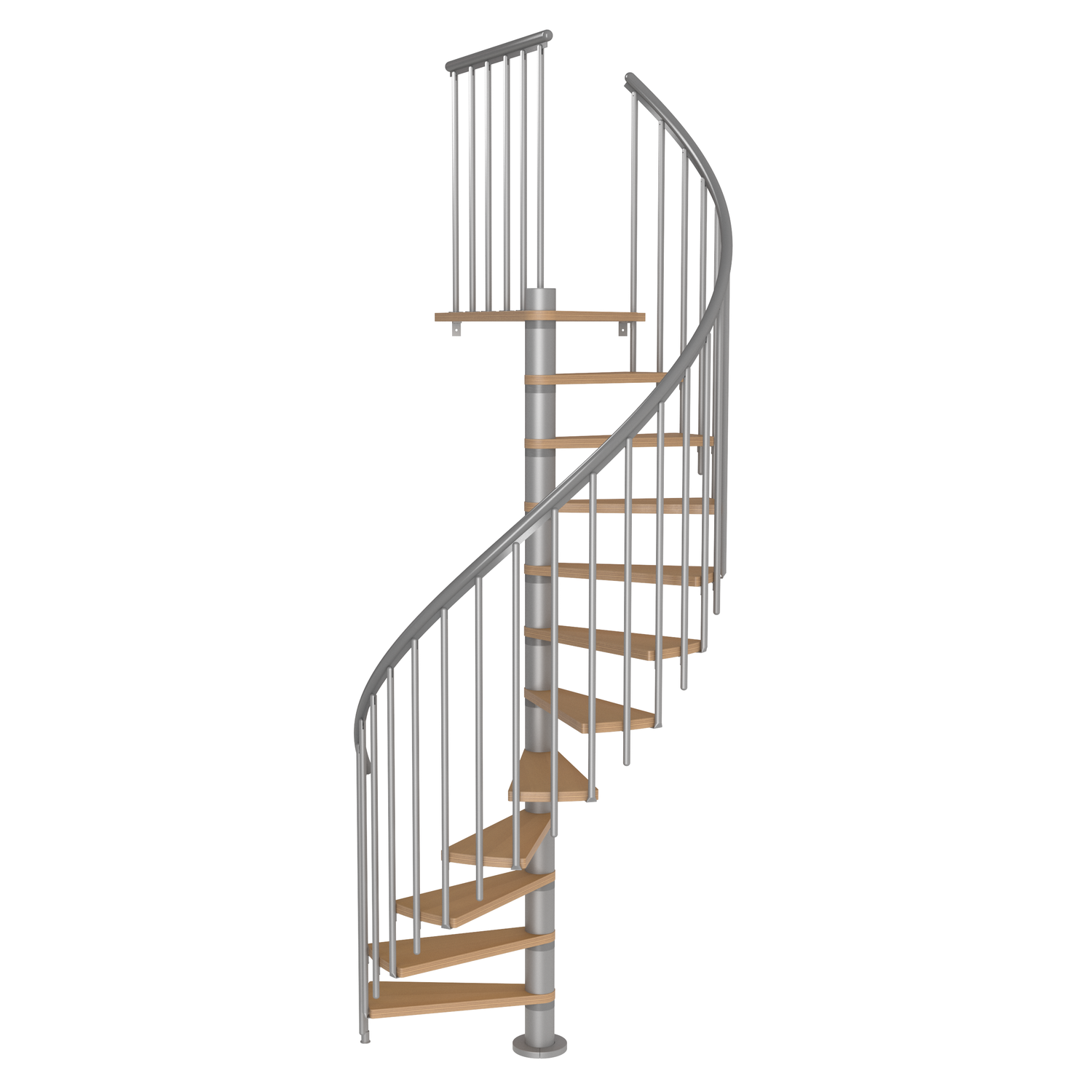

The Calgary staircase kit comes in a 47-inch diameter with an anthracite or grey powder-coated painted finish. Equipped with lacquered multiplex beechwood treads this staircase kit is designed to handle high-traffic areas. The 11 treads plus an additional landing platform provide a comfortable walking space while the single railing with continuous PVC handrail ensures safe access up and down the staircase.

The Calgary can be installed in a clockwise or counterclockwise fashion to fit your exact needs. This kit can be installed in one to two days using common tools. All parts necessary to complete installation are included in this all-in-one kit.

  • Can achieve height of 80-5/16 to 110-1/2 inches
  • Two color options available (Grey or Anthracite)
  • 3 vertical steel balusters per tread
  • Can be installed in either a clockwise or counterclockwise direction
  • Can be installed with 9, 10, or 11 treads + platform
  • Interior use only

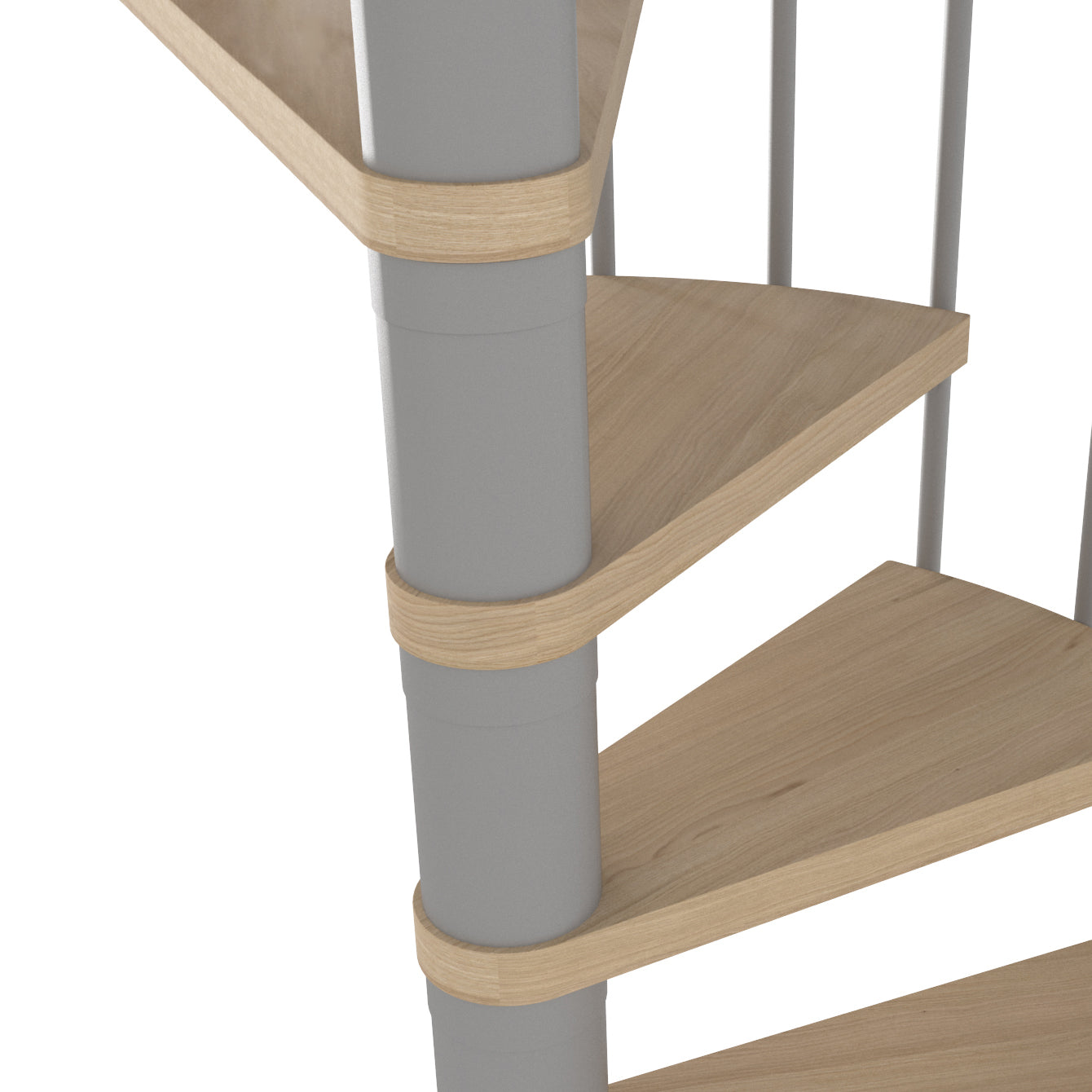

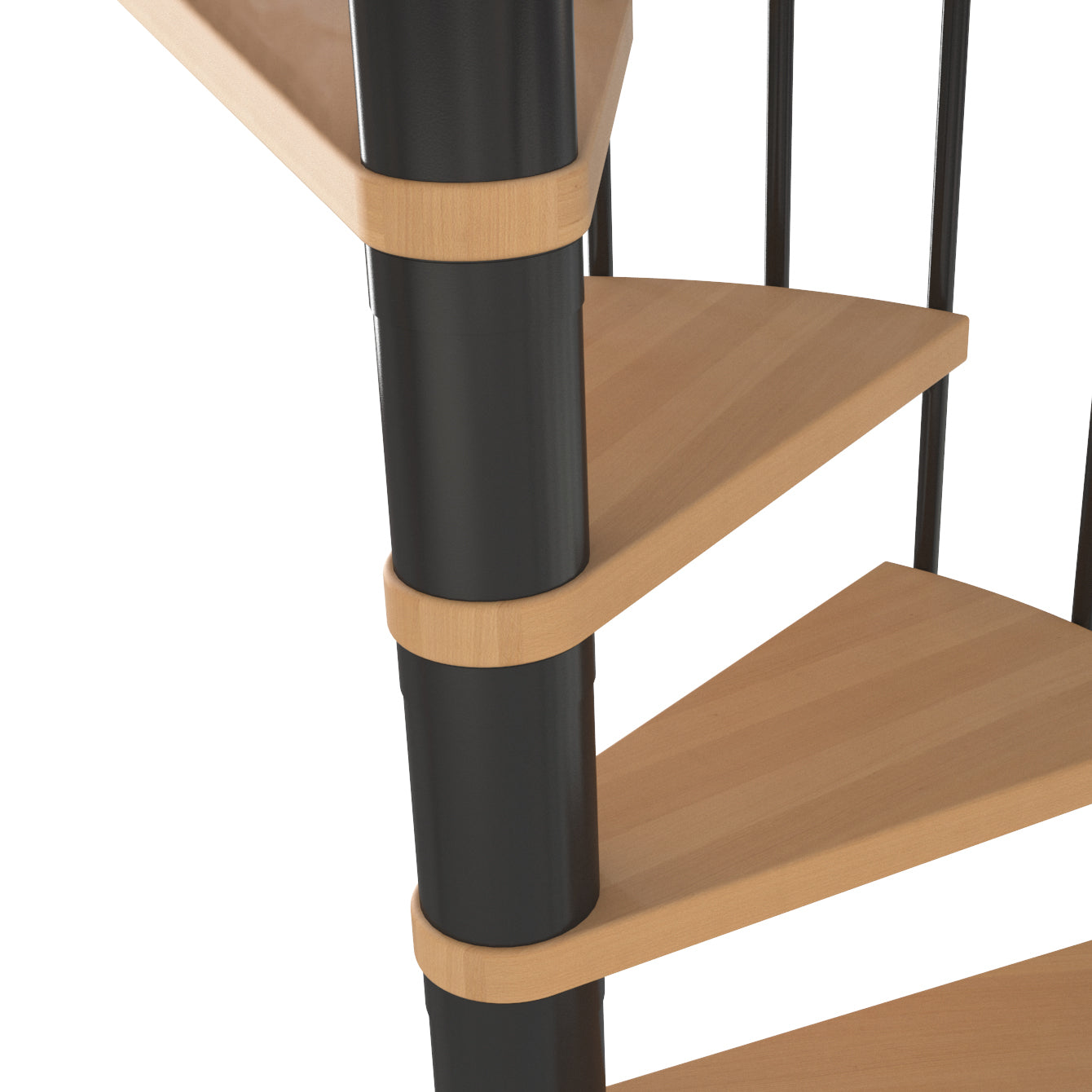

  • Multiplex beech wood treads with scratch-resistant lacquer
  • Requires a 51 in x 51 in minimum finished opening
  • Instruction guides and videos available on DolleUSA.com
  • Includes: 11 Treads, 1 landing platform, center column assemblies and spacers, vertical balusters, handrails, all hardware
  • This spiral staircase is not code compliant, please confirm local code requirements before purchase

Specifications

Tread Material Multiplex beechwood
Tread Thickness 1 3/8"
Tread Count 11 + 1 Landing
Tread Rise 8" - 9 3/16"
Structure Material Powder coated steel
Structure Color Gray or Anthracite
Infill Material Powder coated steel
Handrail Material PVC
Ceiling Opening Required 51" x 51"
Staircase Height 80 5/16" - 110 1/2"
Weight Capacity Point Load: 440 lbs
Max Load: 1366 lbs
Use Indoor Use Only
Important: consult your local building inspector for any questions and specifics regarding compliance with the local building codes prior to purchase.
