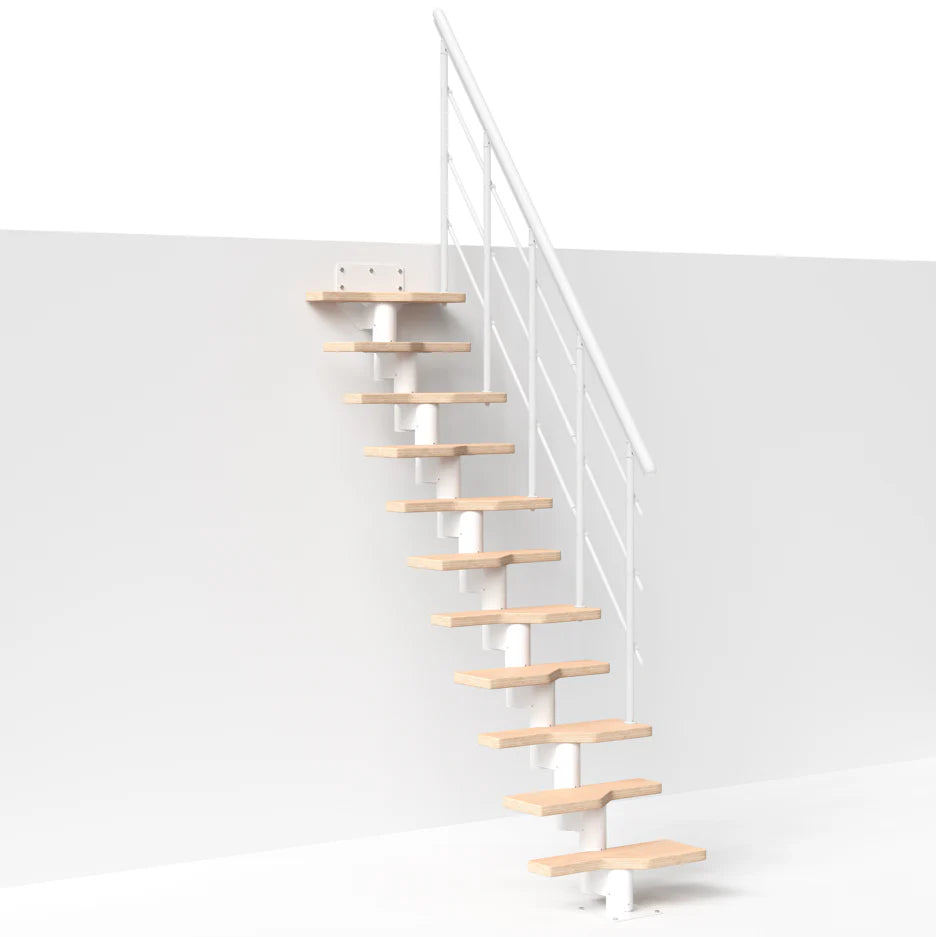

Dolle Lugano Modular Staircase Kit - White
The Dolle Lugano modular staircase kit is the perfect option for a space saving staircase in any loft, office, or bedroom. The Lugano modular staircase offers a contemporary Scandinavian design that is flexible for any tight space.
The Lugano comes with a paddle tread design to optimize space requirements and allow for multiple layouts including straight flights or with a quarter turn. 11 total treads are included, constructed of multiplex beech wood with a scratch resistant varnish.
This kit includes one full side of railing comprised of a PVC handrail, powder coated steel balusters, and PVC infill. The Lugano is adjustable and will accommodate any floor to floor height between 87-3/8 and 108-5/8 inches. This all in one kit contains all parts needed for complete assembly and can be installed with basic tools in one to two days.
- Includes: 11 multiplex treads, PVC handrail, PVC infills, steel balusters, anchors, and all assembly hardware
- Adjustable height range of 87-3/8 in to 108-5/8 in
- White powder coated steel risers
- White PVC handrail 1-1/2 in. diameter

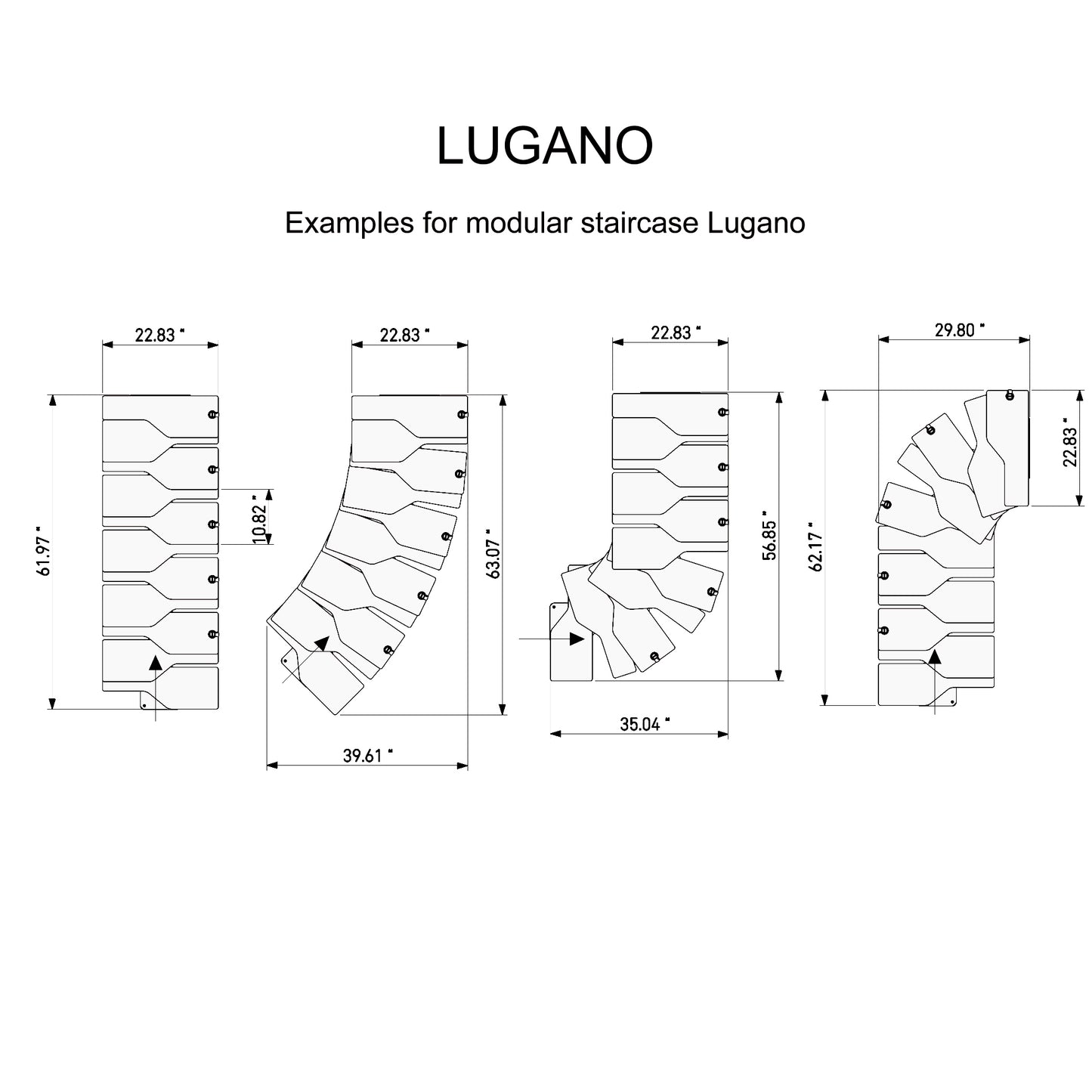

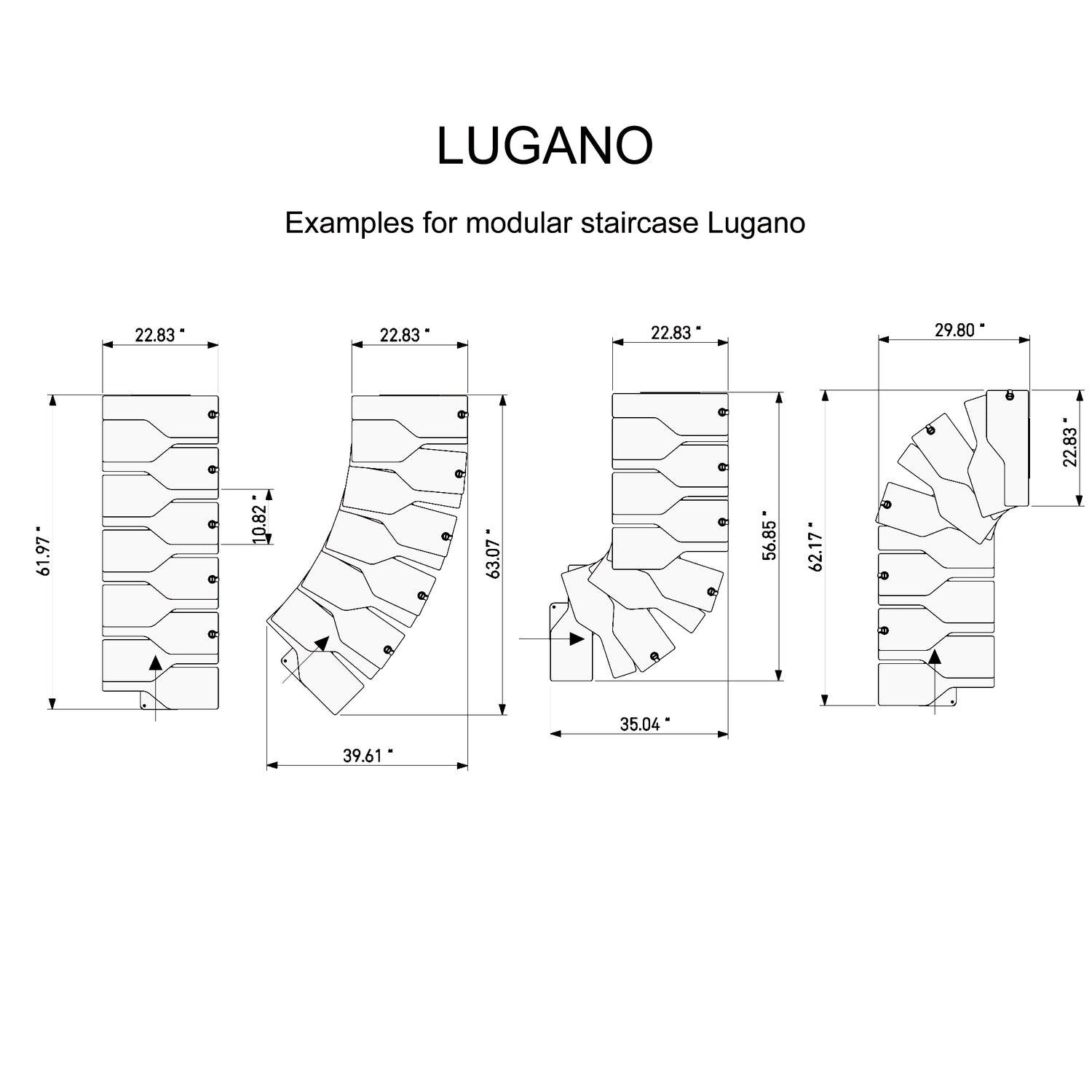

- Can be installed in straight flight or with quarter turn at top or bottom
- 11 Lacquered multiplex beechwood treads included
- Can be installed in 1-2 days with common tools with detailed assembly instructions and support videos available online
- Interior use only
- Modular stairs are non-code compliant items consult your local building inspector for any questions and specifics regarding compliance
Specifications
Tread Material | Multiplex beechwood |
---|---|
Tread Thickness | 1 3/8" |
Tread Count | 11 |
Tread Rise | 7 5/16" - 9 1/16" |
Structure Material | Powder coated steel |
Structure Color | White |
Infill Material | PVC |
Handrail Material | PVC |
Ceiling Opening Required | 51 3/16" x 27" |
Staircase Height | 87 3/8" - 108 5/8" |
Weight Capacity | Point Load: 440 lbs Max Load: 1233 lbs |
Use | Indoor Use Only |
